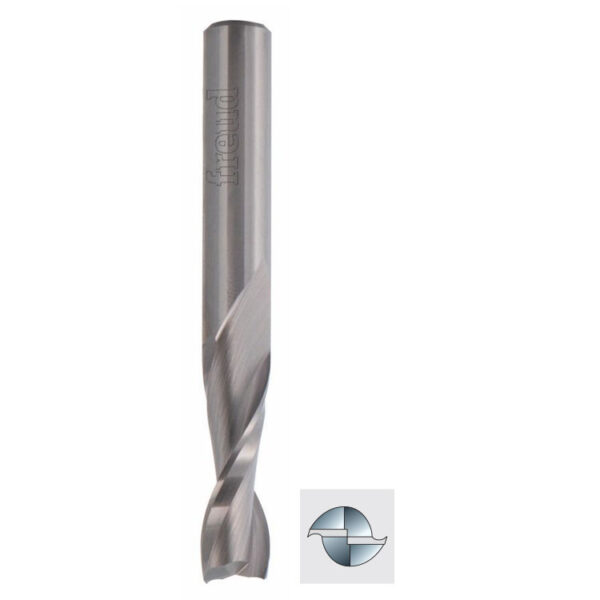

Finishing router cutter upcut with right-hand Z2

Machines:
Nesting and CNC overhead routing machines.

Materials:
Softwood, hardwood and wood based panels.

Applications:
Sizing, plunging and grooving.

Technical information:
Solid Carbide with positive helix bit designed for CNC routing for general purpose with perfect finishing.
• Suitable for sizing, plunging and grooving with a perfect finishing.
• Upcut helix, good chip flow, upward chip removal for best finishing on the lower side of the panel.

Working parameters
To find suggested feeding speeds see the tables below and apply the following correction factors. Materials:
Hardwood: 0,9 MDF, Chipboard: 1,1 Depth of cut:
From 1 x D to 2 x D : 0,75 From 2 x D to 3 x D : 0,5 Over 3 x D : 0,4
Rotation speed:
Suggested speeds are proportional to RPM. Examples:
Factor for 12.000 RPM: 12.000/18.000 = 0,66
Factor for 24.000 RPM: 24.000/18.000 =1,33
To maximise the tool lifetime, always set the maximum speed that delivers the needed quality of cut.
Suggested speeds for softwood: 18.000 RPM. Depth of cut equal to cutting diameter.
