LU5B FREUD Saw blades to cut non-ferrous metals and plastics

Code: LU5B

Price from: 41,70 €

Saw blades to cut non-ferrous metals and plastics.

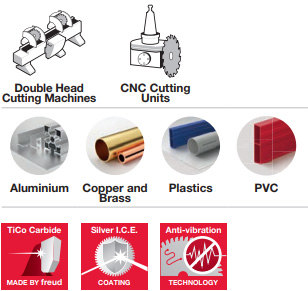

Machines: Double head cutting machines and CNC cutting units.
Materials: Aluminium, copper, brass, plastics and PVC.
Applications: Aluminium, non-ferrous metals and plastic cutting.
Technical information: To cut drawn products and tubes with a thickness between 2 and 5 mm, as well as polymeric panels up to 20 mm. Suitable for PVC profiles cutting.

Measures

Quantity discounts

FT01: 2/7/42 + 2/9/46,4 + 2/10/60 – FT02: 2/9/46,2 + 2/10/60

Code	D (mm)diameter	B (mm)cutting height	bbody thickness	dhole diameter	Zteeth	FT / CHdrive holes	PriceVAT not inc.	PriceVAT inc. not for companies	Quantity
LU5B 0100	D (mm): 200	B (mm): 2,8	b: 2,2	d: 30	Z: 64	49,25€	60,09€	LU5B 0100 quantity
LU5B 0200	D (mm): 250	B (mm): 3,5	b: 3,0	d: 30	Z: 80	KN (CH): FT02	70,45€	85,95€	LU5B 0200 quantity
LU5B 0300	D (mm): 250	B (mm): 3,5	b: 3,0	d: 32	Z: 80	KN (CH): 2/11/63	70,45€	85,95€	LU5B 0300 quantity
LU5B 0400	D (mm): 275	B (mm): 3,5	b: 3,0	d: 40	Z: 84	KN (CH): 2/9/55+4/12/64	75,24€	91,79€	LU5B 0400 quantity
LU5B 0500	D (mm): 300	B (mm): 3,5	b: 3,0	d: 30	Z: 88	KN (CH): FT02	83,45€	101,81€	LU5B 0500 quantity
LU5B 0600	D (mm): 300	B (mm): 3,5	b: 3,0	d: 32	Z: 88	KN (CH): 2/11/63	83,45€	101,81€	LU5B 0600 quantity
LU5B 0700	D (mm): 300	B (mm): 3,5	b: 3,0	d: 40	Z: 88	KN (CH): 2/9/55+4/12/64	83,45€	101,81€	LU5B 0700 quantity
LU5B 0800	D (mm): 300	B (mm): 3,5	b: 3,0	d: 30	Z: 96	KN (CH): FT02	88,24€	107,65€	LU5B 0800 quantity
LU5B 0900	D (mm): 300	B (mm): 3,5	b: 3,0	d: 32	Z: 96	KN (CH): 2/11/63	88,24€	107,65€	LU5B 0900 quantity
LU5B 1000	D (mm): 300	B (mm): 3,5	b: 3,0	d: 40	Z: 96	KN (CH): 2/9/55+4/12/64	88,24€	107,65€	LU5B 1000 quantity
LU5B 1100	D (mm): 330	B (mm): 3,5	b: 3,0	d: 30	Z: 104	KN (CH): FT02	99,86€	121,83€	LU5B 1100 quantity
LU5B 1200	D (mm): 330	B (mm): 3,5	b: 3,0	d: 32	Z: 104	KN (CH): 2/11/63	99,86€	121,83€	LU5B 1200 quantity
LU5B 1300	D (mm): 350	B (mm): 3,5	b: 3,0	d: 30	Z: 96	KN (CH): FT02	95,08€	116,00€	LU5B 1300 quantity
LU5B 1400	D (mm): 350	B (mm): 3,5	b: 3,0	d: 32	Z: 96	KN (CH): 2/11/63	95,08€	116,00€	LU5B 1400 quantity
LU5B 1500	D (mm): 350	B (mm): 3,5	b: 3,0	d: 40	Z: 96	KN (CH): 2/9/55+4/12/64	95,08€	116,00€	LU5B 1500 quantity
LU5B 1600	D (mm): 350	B (mm): 3,5	b: 3,0	d: 30	Z: 108	KN (CH): FT02	99,86€	121,83€	LU5B 1600 quantity
LU5B 1700	D (mm): 350	B (mm): 3,5	b: 3,0	d: 32	Z: 108	KN (CH): 2/11/63	99,86€	121,83€	LU5B 1700 quantity
LU5B 1800	D (mm): 350	B (mm): 3,5	b: 3,0	d: 40	Z: 108	KN (CH): 2/9/55+4/12/64	99,86€	121,83€	LU5B 1800 quantity
LU5B 1900	D (mm): 370	B (mm): 3,5	b: 3,0	d: 30	Z: 112	KN (CH):	109,44€	133,52€	LU5B 1900 quantity
LU5B 2000	D (mm): 370	B (mm): 3,5	b: 3,0	d: 50	Z: 112	KN (CH): 4/15/80	109,44€	133,52€	LU5B 2000 quantity
LU5B 2100	D (mm): 380	B (mm): 3,5	b: 3,0	d: 32	Z: 112	KN (CH): 2/11/63	109,44€	133,52€	LU5B 2100 quantity
LU5B 2200	D (mm): 400	B (mm): 3,5	b: 3,0	d: 30	Z: 120	KN (CH): 2/11/63	113,54€	138,52€	LU5B 2200 quantity
LU5B 2300	D (mm): 400	B (mm): 3,5	b: 3,0	d: 32	Z: 120	KN (CH): 2/11/63	113,54€	138,52€	LU5B 2300 quantity
LU5B 2400	D (mm): 400	B (mm): 3,5	b: 3,0	d: 40	Z: 120	KN (CH): 2/12/64+2/15/80	113,54€	138,52€	LU5B 2400 quantity
LU5B 2500	D (mm): 400	B (mm): 3,5	b: 3,0	d: 50	Z: 120	KN (CH): 4/15/80	113,54€	138,52€	LU5B 2500 quantity
LU5B 2600	D (mm): 420	B (mm): 3,5	b: 3,0	d: 30	Z: 120	KN (CH): 2/11/70	153,90€	187,76€	LU5B 2600 quantity
LU5B 2700	D (mm): 450	B (mm): 4,0	b: 3,2	d: 30	Z: 128	KN (CH):	163,48€	199,45€	LU5B 2700 quantity
LU5B 2800	D (mm): 450	B (mm): 4,0	b: 3,2	d: 32	Z: 128	KN (CH): 2/11/63	163,48€	199,45€	LU5B 2800 quantity
LU5B 3100	D (mm): 500	B (mm): 4,0	b: 3,2	d: 30	Z: 140	KN (CH): 2/10,5/70	196,99€	240,33€	LU5B 3100 quantity
LU5B 3200	D (mm): 500	B (mm): 4,0	b: 3,2	d: 32	Z: 140	KN (CH): 2/11/63	196,99€	240,33€	LU5B 3200 quantity
LU5B 3500	D (mm): 550	B (mm): 4,2	b: 3,5	d: 30	Z: 148	KN (CH): 2/11/63	232,56€	283,72€	LU5B 3500 quantity
LU5B 3800	D (mm): 550	B (mm): 4,2	b: 3,5	d: 32	Z: 148	KN (CH): 2/11/63	232,56€	283,72€	LU5B 3800 quantity
LU5B 3600	D (mm): 600	B (mm): 4,8	b: 3,8	d: 30	Z: 156	KN (CH):	270,18€	329,62€	LU5B 3600 quantity
